Viscosity pH Control
Viscosity Control systems for ink, adhesives and varnishes
Solutions with measurement technology and viscosity control by vibration technology. From the experience of GAMA in the packaging market, and with the support of I&C and of R&D of leading Press Suppliers, the viscosimeters VIS G26 and G29 have been developed: simple tools, compact and easy to use, that control ink viscosity, both solvent based and water based, integrated in the pipe for the distribution of the ink from the container to the printing unit.

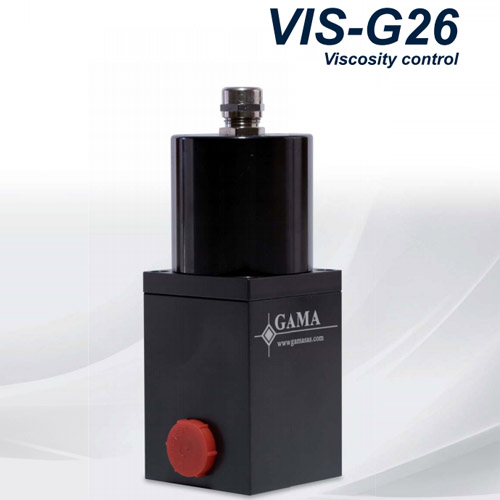

The VIS G26, projected to ensure the quality of the printed product, is based on a principle of ink control through the vibration of a sensor, diapason, that in contact with the ink softens its vibration and creates a wave that goes through the liquid. The observed data are elaborated and transformed in Ford or Zhaan cup values.
The viscosity values are compared with the set up data and, for every variation, the Supervisor elaborates on the fly the perfect formula of ink-solvent and will automatically modify the percentage of solvent in the ink. The System provides the operator with a production report about the viscosity’s, temperature’s and quantity’s deviation of the solvent used. The sophisticated software of Gama allows an ink control every 10 for an accurate quality of printing.
THE VIS-G31
The VIS-G31 is a microprocessor controller for the viscosity, pH and temperature of the water based ink and varnish. The viscosity measurement is possible through a vibration sensor immersed in the analyzed liquid, without moving parts. It is installed in line or by pass; it emits a frequency which, in contact with the liquid, is changed. From the analysis the G31 elaborates the viscosity in seconds (cup ZAHN, FORD, …) and by the management of the water valve it keeps the value according to the set up reference. The cleaning of the viscometer is made at the end of the job, during the washing of the inking circuit.
APPLICATIONS
Corrugate flexographic and rotogravure presses.
Water based ink, varnish and lacquer.
CONSOLE AND COMMAND PANEL
Rack system cabled by connectors.
Serial communication between PC7Keypad and control boards.
Keypad HMI 7” and 9,7”.
PC with 15”,17” and 21” touch screen monitor.
Choice of the reference cup for the set up of the viscosity reference.
Job storage.
Error signal (no ink, no water or viscosity over tolerance).
DETECTOR G31-RIV
G31-RIV to install in danger zone near the ink tank.
Water, ammine and stabilizer control and correction by
pneumatic valve.
Feeding by rotary or alternative pumps.
Viscosity, pH and temperature are measured with 1% accuracy in standard condition.
MAINTENANCE AND CLEANING
At the end of the job, the clearing of the detector is made together with the in system.
Without mechanical moving components, without usury.
THE VIS-G29
The VIS-G29 is a microprocessor controller for the regulation of the viscosity of the ink. The viscosity measurement is possible through a vibration sensor immersed in the analyzed liquid, without moving parts. It’s installed in series to the outlet; it emits a frequency which, in contact with the liquid, is changed. From the analysis the control elaborates the viscosity in seconds (cup ZAHN, FORD, …) and through the management of the solvent valve keeps the value according to the reference. The cleaning of the viscometer is made at the end of the job, while washing the inking circuit.
APPLICATIONS
Rotogravure and flexographic presses.
Water base and solvent base ink.
CONSOLE AND COMMAND PANEL
PC with 15″ touchscreen monitor.
Visualization of all colours controlled, on the same screen.
Visualization of viscosity by a graphic bar.
Choice of the reference cup, set of the viscosity reference.
It is possible to save until 5000 different works.
Temperature compensation.
Error signalization (no ink, no solvent or viscosity over tolerance).
CONTROL G29-VID
Rack system cabled by connectors.
Installed in a cabinet.
serial communication between PC and control.
STAND ALONE CONTROL G29-DIG
Display 4,3″-10″
In option PC touchscreen.
DECTECTOR G29-RIV
G29-RIV to install in danger zone near the ink tank.
Solvent correction through pneumatic valve.
Feeding by rotary or alternative pumps; Viscosity is measured with 1% accuracy.
MAINTENANCE AND CLEANING
At the end of the job, the clearing of the detector is made together with the in system.
Without mechanical moving components, without usury.
