Flexo Press

Designed To Meet Smaller Budgets Without Sacrificing Quality And Performance

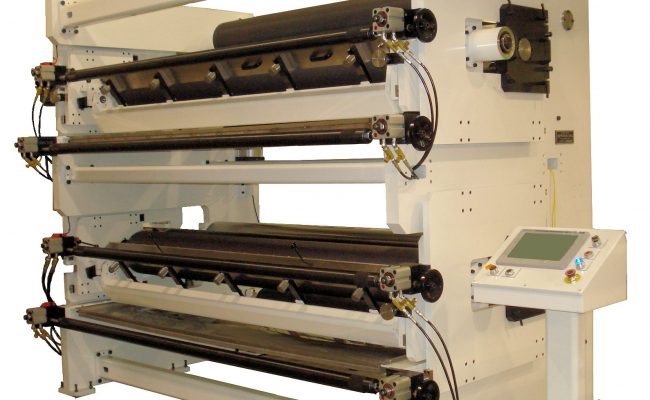

The T-Series narrow web flexo presses from Retroflex are designed to meet smaller budgets without sacrificing quality and performance.

T-Series presses are ideal for both narrow to medium web widths and are equipped with the Retroflex chambered doctor blade system, ceramic anilox roll, and pneumatic throw-off. Most T-Series flexo presses are designed to run up to 500 fpm, and sometimes higher under certain conditions.

Temperature controlled rolls and doctor blade systems are available for specialty fluids such as dry or wet wax, lotions, or anti-bacterial solutions.

• Web Widths: 8 to 60 Inches
• Web Speeds: Up to 500 FPM
• Configuration: Inline
• Colors: 1 Standard (multiple optional)
• Doctor Blade System: Retroflex RADBS Chambered System
• Ceramic Anilox Roll
• Pneumatic Throw-Off

• Circumferential Registration (manual)
• Tension Isolation Nip Roll System
• Auto-Flush Systems For Ink Chambers
• Web Inspection Camera
• Unwind And Rewind (single or turret)
• Dryer System (hot air, IR, UV, EB or compressed air)
• Chill Section

HD Option

The Heavy Duty option is an overall more robust design than the standard model, with thicker frames and larger roll diameters. Typically ordered when larger than standard repeats and/or higher than standard speeds are requested.

Designed In Multiple Configurations To Meet Smaller Budgets Without Sacrificing Quality And Performance

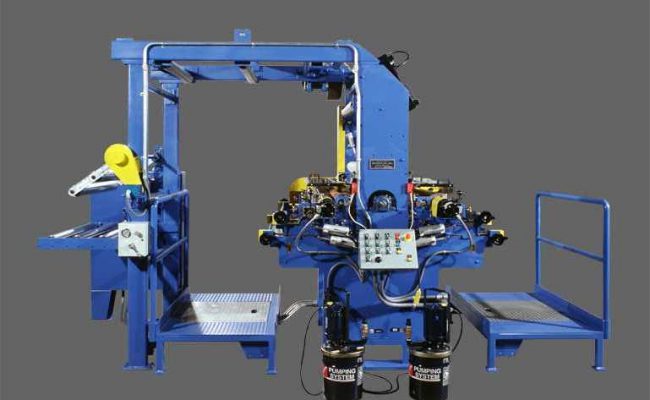

The S-Series flexo presses from Retroflex are designed in multiple configurations to meet smaller budgets without sacrificing quality and performance.

These flexo presses can be built for narrow to medium web widths and are equipped with the Retroflex chambered doctor blade system, ceramic anilox roll, and pneumatic throw-off. Most S-Series flexo presses are designed to run up to 500 fpm, and sometimes higher under certain conditions.

• Web Widths: 10 to 45 inches
• Web Speeds: Up to 500 FPM
• Configuration: Inline, Stack or CI
• Colors: Up to 10 Colors
• Doctor Blade System: Retroflex RADBS Chambered System
• Ceramic Anilox Roll
• Pneumatic Throw-Off

• Precision-Ground CI Drum
• Circumferential Registration (manual)
• Tension Isolation Nip Roll System
• Sleeved Anilox/Plate Rolls
• Bridge System For Sleeves
• Auto-Flush Systems For Ink Chambers
• Gearless Servo Drive System
• Sleeve Carts And Lifts
• Web Inspection Camera
• Unwind (Single Or Turret)
• Dryer System (hot air, IR, UV, EB or compressed air)
• Chill Section

Designed To Meet More Demanding Applications For Narrow To Mid-Width Flexo Webs

These flexo presses can be built for both narrow to medium web widths and are equipped with the Retroflex chambered doctor blade system, ceramic anilox roll, and pneumatic throw-off. Most K-Series flexo presses are designed to run up to 1,000 fpm, and sometimes higher under certain conditions.

• Web Widths: 20 to 70 Inches
• Web Speeds: Up to 1,000 FPM
• Configuration: Inline, Stack or CI
• Colors: Up to 10 Colors
• Doctor Blade System: Retroflex RADBS Chambered System
• Ceramic Anilox Roll
• Pneumatic Throw-Off

• Precision-Ground CI Drum
• Circumferential Registration (manual)
• Tension Isolation Nip Roll System
• Sleeved Anilox/Plate Rolls
• Bridge System For Sleeves
• Auto-Flush Systems For Ink Chambers
• Gearless Servo Drive System
• Sleeve Carts And Lifts
• Web Inspection Camera
• Unwind (Single Or Turret)
• Dryer System (hot air, IR, UV, EB or compressed air)
• Chill Section

Built To Meet High-Demand Applications Using Medium To Wide Width Webs

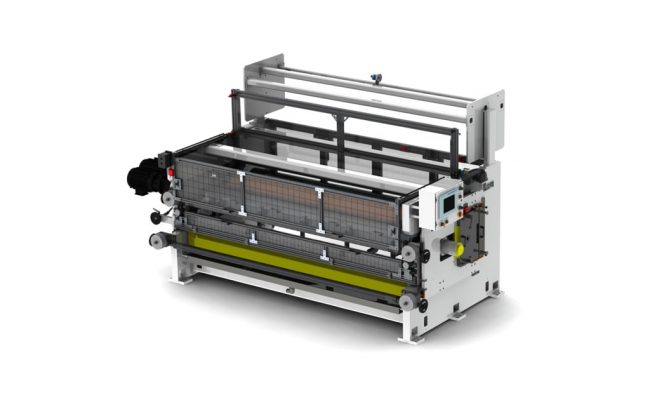

The Fox-Series flexo presses are designed to handle large repeats at high speeds while maintaining the precise register and product quality you demand.

The Fox-Series flexo presses are available for 60″ to over 120″ wide webs running speeds over 3,000 fpm. Fox-Series presses are available in in-line, stack and central impression configurations.

Rich in standard features, an array of additional options provides you with a cost-efficient way to customize your press productivity for your specific application.

• Web Widths: 60 to over 120 inches
• Web Speeds: Over 3,000 FPM
• Configuration: Inline, Stack or CI
• Colors: Up to 10 Colors
• Doctor Blade System: Retroflex RADBS Chambered System
• Ceramic Anilox Roll
• Pneumatic Throw-Off
• Quick-Exchange Ink Chambers
• Sunday Drives
• Side-To-Side Registration (manual)

• Precision-Ground CI Drum
• Circumferential Registration (manual)
• Tension Isolation Nip Roll System
• Sleeved Anilox/Plate Rolls
• Bridge System For Sleeves
• Auto-Flush Systems For Ink Chambers
• Gearless Servo Drive System
• Sleeve Carts And Lifts
• Web Inspection Camera
• Unwind (Single Or Turret)
• Dryer System (hot air, IR, UV, EB or compressed air)
• Chill Section
