Ink Viscometers & Viscosity Control

Ink Viscosity Quality Control and Correction Systems

Viscometer Solutions for ink, adhesives and varnishes

GAMA offers a wide and consolidated range of ink viscometers, viscosity and quality control and correction systems, for Printing and Converting. These simple tools are  compact and easy to use, controlling ink viscosity, both solvent based and water based, integrated in the pipe for the distribution of the ink from the container to the printing unit.

The VIS G26, projected to ensure the quality of the printed product, is based on a principle of ink control through the vibration of a sensor, diapason, that in contact with the ink softens its vibration and creates a wave that goes through the liquid. The observed data are elaborated and transformed in Ford or Zhaan cup values.

The viscosity values are compared with the set-up data and, for every variation, the Supervisor elaborates on the fly the perfect formula of ink solvent and will automatically modify the percentage of solvent in the ink. The system provides the operator with a production report about the viscosity, temperature, and quantity deviation of the solvent used. The sophisticated software of Gama allows an ink control every 10 for an accurate quality of printing.

VISCOMETER G26

G26 Viscometer GAMA

Viscometer G26

The VIS-G26 is a microprocessor controller for the regulation of the viscosity of the ink. The viscosity measurement is possible through a vibration sensor immersed in the analyzed liquid, without moving parts. It’s installed in series to the outlet; it emits a frequency which, in contact with the liquid, is changed. From the analysis the control elaborates the viscosity in seconds (cup ZAHN, FORD, …) and through the management of the solvent valve keeps the value according to the reference. The cleaning of the viscometer is made at the end of the job, while washing the inking circuit.

Features & Benefits

APPLICATIONS

  • Rotogravure, flexo
  • Ink, cold seal, glow, and varnishes

CONSOLE AND COMMAND PANEL

  • PC with 15″ touchscreen monitor
  • Visualization of all colors controlled, on the same screen
  • Visualization of viscosity by a graphic bar
  • Choice of the reference cup, set of the viscosity reference
  • It is possible to save until 5000 different works
  • Temperature compensation
  • Error signalization (no ink, no solvent or viscosity over tolerance)

CONTROL G26-VID

  • Rack system cabled by connectors
  • Installed in a cabinet
  • Serial communication between PC and control
  • Intrinsically safe barriers

STAND ALONE CONTROL G26-DIG

  • Display 4,3″-10″
  • In option PC touchscreen

DETECTOR G26-RIV

  • G26-RIV to install in danger zone near the ink tank.
  • Solvent correction through pneumatic valve, the valve can be marked.
  • Feeding by rotary or alternative pumps; Viscosity is measured with 1% accuracy.

MAINTENANCE AND CLEANING

  • At the end of the job, the clearing of the detector is made together with the in-system.
  • Without mechanical moving components, without usury.

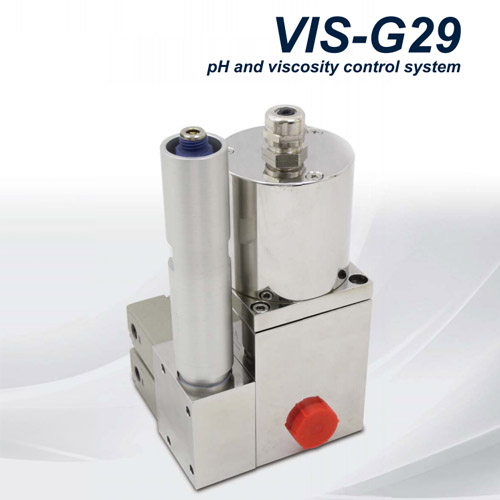

VISCOMETER G29

Viscometer G29

The VIS-G29 is a microprocessor controller for the regulation of the viscosity of the ink. The viscosity measurement is possible through a vibration sensor immersed in the analyzed liquid, without moving parts. It’s installed in series to the outlet; it emits a frequency which, in contact with the liquid, is changed. From the analysis the control elaborates the viscosity in seconds (cup ZAHN, FORD, …) and through the management of the solvent valve keeps the value according to the reference. The cleaning of the viscometer is made at the end of the job, while washing the inking circuit.

Features & Benefits

APPLICATIONS

  • Rotogravure and flexographic presses.
  • Water base and solvent base ink.

CONSOLE AND COMMAND PANEL

  • PC with 15″ touchscreen monitor.
  • Visualization of all colors controlled, on the same screen.
  • Visualization of viscosity by a graphic bar.
  • Choice of the reference cup, set of the viscosity reference.
  • It is possible to save until 5000 different works.
  • Temperature compensation.
  • Error signalization (no ink, no solvent, or viscosity over tolerance).

CONTROL G29-VID

  • Rack system cabled by connectors
  • Installed in a cabinet
  • Serial communication between PC and control

STAND ALONE CONTROL G29-DIG

  • Display 4,3″-10″
  • In option PC touchscreen.

DECTECTOR G29-RIV

  • G29-RIV to install in danger zone near the ink tank
  • Solvent correction through pneumatic valve
  • Feeding by rotary or alternative pumps; Viscosity is measured with 1% accuracy

MAINTENANCE AND CLEANING

  • At the end of the job, the clearing of the detector is made together with the in system
  • Without mechanical moving components, without usury

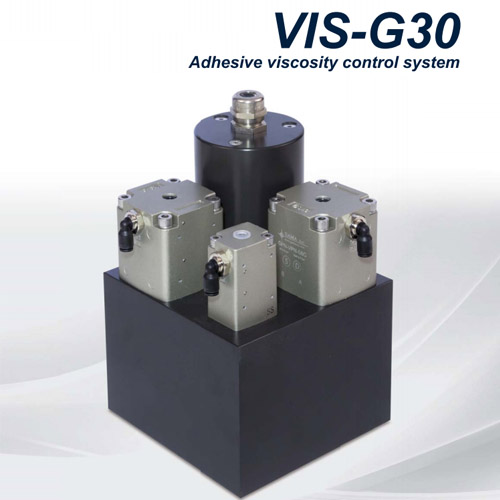

VISCOMETER G30

viscometer gamaViscometer G30

The VIS-G30 is a microprocessor controller for the regulation of the viscosity of the ink. The viscosity measurement is possible through a vibration sensor immersed in the analyzed liquid, without moving parts. It’s installed in series to the outlet; it emits a frequency which, in contact with the liquid, is changed. From the analysis the control elaborates the viscosity in seconds (cup ZAHN, FORD, …) and through the management of the solvent valve keeps the value according to the reference. The cleaning of the viscometer is made at the end of the job, while washing the inking circuit.

VIS-G30 Features & Benefits

APPLICATIONS

  • Rotogravure and flexo machine
  • Adhesive cold seal, glow, varnishes, and special inch

CONSOLE AND COMMAND PANEL

  • 4″-10″ touch screen monitor
  • Visualization of all colors controlled, on the same screen
  • Choice of the reference cup, set of the viscosity reference
  • Temperature compensation
  • Error signalization (no ink, no solvent, or viscosity over tolerance)

CONTROL G30-DIG

  • Rack system cabled by connectors
  • Installed in a cabinet
  • Serial communication between display and control

STAND ALONE CONTROL G30-DIG

  • Display 4,3″-10″
  • In option PC touchscreen

DETECTOR G30-RIV

  • G30-RIV to install in danger zone near the ink tank
  • Correction through pneumatic valve
  • Feeding by rotary or alternative pumps
  • Viscosity is measured with 1% accuracy

MAINTENANCE AND CLEANING

  • At the end of the job, the clearing of the detector is made together with the in system, without mechanical moving components, without usury
VIS-G32

Viscometer G32

The VIS-G32 is a microprocessor controller for regulating the viscosity of adhesive, varnish, and lacquer. The viscosity measurement is possible through a vibration sensor, immersed in the analyzed liquid and without moving parts, that emits a frequency which, in contact with the fluid, changes. From the analysis of it, the controller processes the viscosity in seconds (cup ZHAN, FORD) and, through the management of the solvent valve, keeps the value according to the reference. The cleaning of the viscometer is made on job while washing the adhesive circuit.

VIS-G32 Features & Benefits

APPLICATIONS

  • Rotogravure and flexographic presses and laminations
  • Water and solvent based adhesives, cold seal, glow, varnish and special inks

CONSOLE AND COMMAND PANEL

  • HMI touchscreen 4.4″-9.7″ display
  • Visualization of all colors controlled, on the same screen
  • Visualization of viscosity by a graphic bar
  • Choice of the reference cup, set of the viscosity reference
  • Possibility to save up to 50 different works
  • Error signalization (no ink, no solvent, or viscosity over tolerance)

CONTROL G32

  • Rack system cabled by connectors
  • Installed in a cabinet
  • Serial communication between HMI and control

DETECTOR G32

  • G32-RIV to install in a danger zone near the liquid tank
  • Correction through pneumatic valve
  • Feeding by rotary or alternative pumps
  • Viscosity is measured with 1% accuracy

OPTION

  • Control pH G80 by a probe dedicated
  • Magnetic filter G70 filter
  • Control of temperature by G90 heat exchanger

MAINTENANCE AND CLEANING

  • At the end of the job, the clearing of the detector is made together with the in system, without mechanical moving components, without usury
