Strapping & Strapping Equipment
For Corrugated Packaging
STRAPPING EQUIPMENT
Details
The TP-702C and TP-702CQ3-S. is a high speed automatic strapping system designed for the latest high speed flexo folder gluers. The TP-702C and TP-702CQ3-S. can be offered in tandem systems for speed (and redundancy) requirements and comes complete with integration capabilities and auto setup.
- 26 bundles per minute capability
- Minimum bundle size – 200 mm (W) x 200 mm (H) x 300 mm (L)
- 3-side squaring bundle control
- Strap Width – 5 mm, 6 mm, 9 mm PP Strap (Currently reading 5-6mm)
- Auto strap ejector
- Bundle weight 40 kg
- Reliable long-lasting heat sealer
- Serve driven auto setup
- Designed for the latest high speed flexo folder gluers.
- 200-600 volt 3 phase
- DC brushless motor technology
- Power roller table top with VFD 270 degree table top
- Auto strap feed
- Siemens PLC with HMI touchscreen auto setup
- 3 color light tower (red, yellow, green)
- Tool less access to strapping head
- Long lasting UHMW track
- Tandem system configuration
- Patented jammed-strap ejection device
- High speed fully automatic strapping system

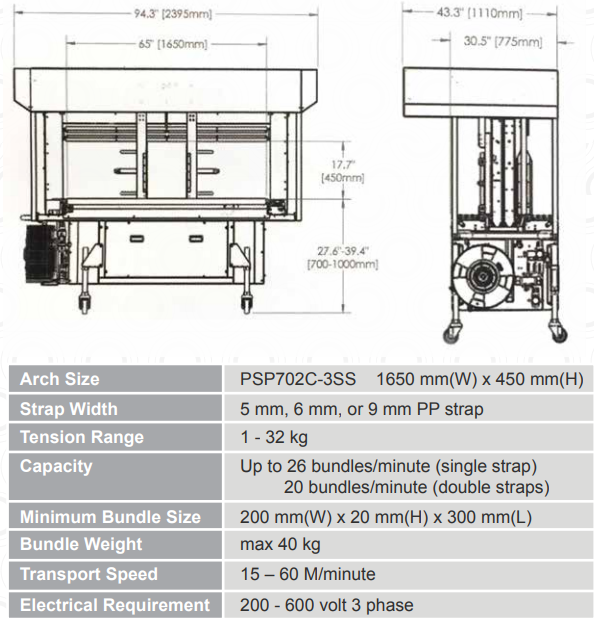

Specs
